รายละเอียดสินค้า:
|
| หมายเลขรุ่น: | JP-1936st | ความถี่: | 40KHz/28KHz |
|---|---|---|---|
| พลัง: | 0-46.8kw | พลังความร้อน: | 66kW |
| น้ำหนักสุทธิ: | 4,000 กิโลกรัม | น้ำหนักขั้นต้น: | 4300kg |
| ความจุ: | 7280L / 2000 แกลลอน | ขนาดรถถัง: | 3.5*1.6*1.3m |
| ขนาดหน่วย: | 390*200*200 ซม. | ขนาดบรรจุภัณฑ์: | 400*210*210 ซม. |
| วัสดุ: | สแตนเลส SUS304 | ความหนาของถัง: | 3 มม. |
| พลังงานอัลตราโซนิก: | 46800W | การตั้งค่าอุณหภูมิ: | อุณหภูมิห้อง ~ 95 ° C ปรับได้ |
| โหลดตะกร้า: | 2000 กิโลกรัม | ||
| เน้น: | 2000 gallon ultrasonic cleaner,ultrasonic cleaner for AC coils,industrial ultrasonic cleaner with heater |
||
| Model | JP-1923ST |
|---|---|
| Function | Ultrasonic cleaning |
| Ultrasonic Frequency | 28/40kHz (customizable) |
| Tank Material | SUS 304 (SUS 316 customizable) |
| Tank Thickness | 3mm |
| Inner Dimensions | 3500×1600×1300mm |
| Capacity | 7280L |
| Transducers | 936pcs |
| Ultrasonic Power | 46800W |
| Heating Power | 66000W |
| Ultrasonic Timer | 0-99 hours |
| Temperature Range | Room temperature to 95°C adjustable |
| Drain Valve | Included |
| Water Inlet/Outlet | Included |
| Generators | 26 sets (1800W each) |
| Basket Capacity | 2000KG |
| Packing Dimensions | 400×210×210cm (wooden case) |
| Weight | 4000KG (N.W.) / 4300KG (G.W.) |
| Power Supply | 380V 3 phase; 220V 3 phase; 415V; 600V |
| Warranty | 1 year parts warranty with lifetime technical support |
| Certifications | CE, RoHS, FCC, REACH |
| Lead Time | 20-30 working days after deposit |

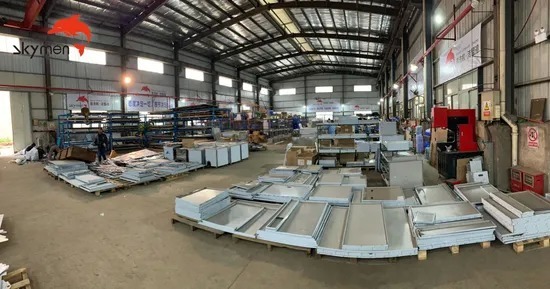

Skymen Cleaning Equipment Shenzhen Co. Ltd. has specialized in ultrasonic cleaning technology for over 13 years. Our product range includes household cleaners, benchtop stainless steel units, and industrial-scale systems. With dedicated R&D teams, we develop customized solutions and welcome collaborative product development.
We offer 12 months warranty on all SKYMEN ultrasonic cleaners. During this period, we provide free replacement parts and technical support. Continued technical assistance is available after the warranty period.
Ultrasonic cleaning is generally safe for most components. However, the powerful implosion effects (thousands per second) require careful observation in some applications to ensure part integrity.
