รายละเอียดสินค้า:
|
หมายเลขรุ่น: | JP-1216-11512ST | แหล่งจ่ายไฟ: | AC380V 50Hz, 240V 60Hz 3phase |
---|---|---|---|
ความถี่: | 28/40kHz ความถี่เดี่ยวหรือคู่ | วัสดุถัง: | สแตนเลส SUS304/SUS 316 |
เครื่องทำความร้อน: | ปรับได้ 20-95 ° C | ตัวจับเวลา: | ปรับได้ 1-99 ชั่วโมง |
แพ็คอัลตราโซนิก: | แยกออกจากกัน | ความจุของถัง: | 1500L |
พลังงานอัลตราโซนิก: | 10800W | พลังความร้อน: | 36000W |
โหลดตะกร้า: | 500 กิโลกรัม | ความหนาของถัง: | 3 มม. |
มิติถังด้านใน: | 2000*1200*800มม | เครื่องกำเนิดไฟฟ้า: | 1800W |
จำนวนทรานสดิวเซอร์: | 216 ชิ้น | ||
เน้น: | Industrial Ultrasonic Cleaner stainless steel,Large capacity ultrasonic cleaner 4000L,Stainless steel tank ultrasonic cleaner |

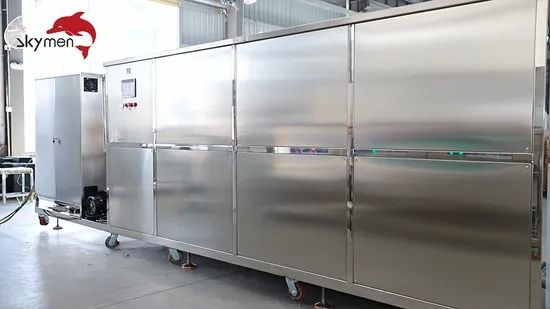

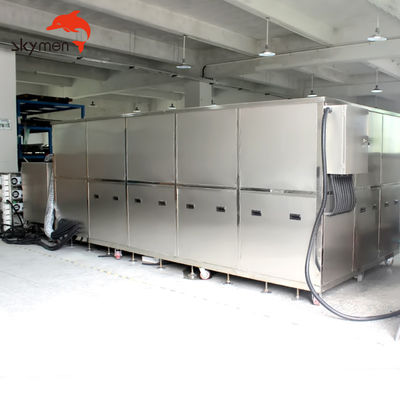

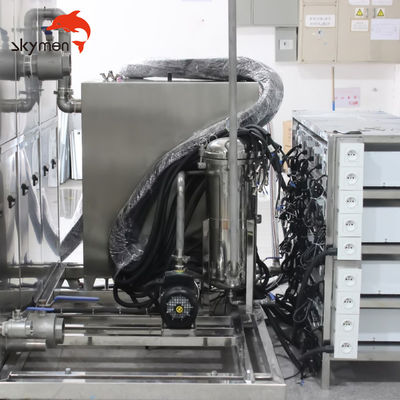

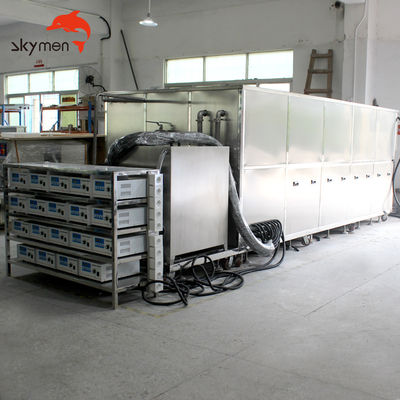

Professional-grade ultrasonic cleaning solution for mechanical and metal parts with capacities ranging from 1500L to 20000L. Features air cooler washing system for efficient cleaning performance.
Model | JP-1288ST |
---|---|
Function | Ultrasonic cleaning |
Ultrasonic Frequency | 28/40kHz (customizable) |
Tank Material | SUS 304 (SUS 316 customizable) |
Thickness of tank | 3mm |
Inner tank dimension | 2000×1200×800mm |
Tank Capacity | 1500L |
Transducer | 216pcs (Korean technology) |
Ultrasonic Power | 10800W |
Heating Power | 36000W |
Temperature Range | Room temperature ~ 95°C adjustable |
Basket Load Capacity | 500KG |
Power Supply | 380V 3 phase; 220V 3 phase; 415V; 440V; 600V |
Warranty | 1 year warranty for spare parts, lifetime technical support |
Certifications | CE, RoHS, FCC, REACH |
Lead Time | 20-30 working days after deposit |
Ultrasonic cleaning effectively removes dirt, oils, lubricants, carbon, and other contaminants that accumulate on industrial parts. The technology reaches into grooves, internal passageways, hidden corners, seals, and other hard-to-access areas, eliminating hours of manual disassembly and reassembly.
The cavitation process creates millions of tiny bubbles that implode, releasing energy that gently but thoroughly cleans all surfaces in contact with the cleaning fluid. This method is non-damaging to parts while significantly reducing labor costs and cleaning time.
Ideal for use in:
Skymen Cleaning Equipment Shenzhen Co., Ltd. has specialized in ultrasonic cleaning technology for over 14 years. We offer high-quality products with comprehensive after-sales support, including both standard and custom-designed cleaning solutions.
